Product Dimensions 5.88"h x 29.75"w x 22"d

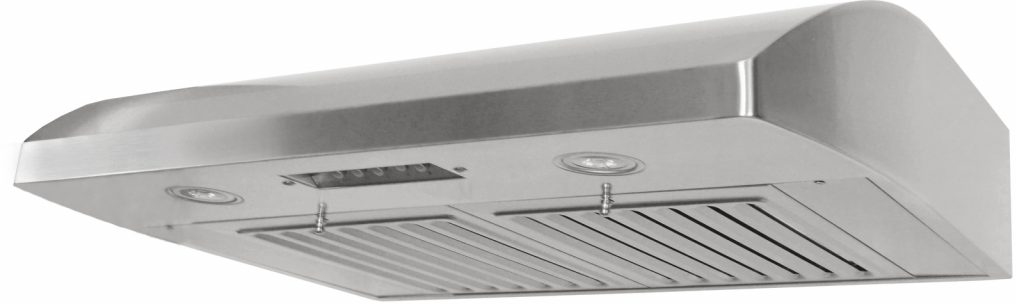

KOBE Brillia under cabinet range hood is equipped with 3-speed mechanical push button, dishwasher-safe baffle filters, and LED lights. It is a powerful hood with 680 CFM internal blower yet quiet at 1.0 sone on QuietMode.Read More
This range hood is handcrafted with 18-gauge commercial grade stainless steel and features a beautiful seamless design. Must purchase TVC20 for rectangular venting.
QuietMode™: At 300 CFM, this unique feature allows the KOBE range hood to operate at a reduced sound level of 40 decibels (1.0 sone).
Blower Type: Twin Vertical Turbine Impeller
Speed / Control: 3-Speed / Mechanical Push Button Control
CFM / Sone: 300 / 1.0 / QuietMode™, 510 / 3.0 / Low, 680 / 5.0 / High
Exhaust: Top 6″ Round, Top 3-1/4″ x 10″ Rectangular (Optional with TVC20), Rear 3-1/4″ x 10″ Rectangular (Optional with TVC20)
Light: The hood is equipped with 3W LED lights (3W)
Filters: Dishwasher safe professional baffle filters allow for easy cleaning.
Attractive Appearance: The seamless curves and stylish appearance of the hood will compliment any kitchen.
Easy to Clean: KOBE’s unique design, which includes easy to empty catch areas and smooth hood surface, lets you clean the fans without disassembling the hood.
Quality: Parts are checked for defects and designed for trouble free long term use.
Easy to Install: Our special design makes installation fast and easy.
colour: Commercial Grade Stainless Steel
Versatile Installation: This versatile hood can be used for under cabinet or for wall mount style with the optional duct cover.
General Specs | |
| Width (in.) | 29.75 |
| Height (in.) | 5.88 |
| Duct Size (in.) | 6" Round (15.24cm) |
| Depth (in.) | 22 |
| Collection | Brillia |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 76 |
| Color/Finish Name | Stainless Steel |
| Manufacturer Warranty | 1 Year Labor / 2 Year Parts |
| Range Hood Type | Under Cabinet |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 30 |
| Smart Compatible | No |
| Maximum CFM | 680 |
| Grease Filter Type | Baffle |
| Bulb Type | LED |
| Sones Rating | 1.0 - 5.0 |
| Fan Speed Options | 3 |
| Vent Location | Top |
| Height Above Cooktop | 26 - 30 |
| Ventilation Direction | Vertical |
| Width (cm) | 75.57 |
| Height (cm.) | 14.92 |
| Depth (cm.) | 55.88 |
| Height Above Cooktop Centimeter | 66.04 - 76.20 |
| Amp | 2.21 |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Ducted |
Additional Information | |
| Control | Mechanical Push Button |
| QuietMode™ | 1.0 Sone |
| Ducting | Vertical and Horizontal |
| ECO Mode | No |
| Optional Accessories | Top Vent Cover, Backsplash Panel |
