Product Dimensions 42.88"h x 29.75"w x 20.5"d

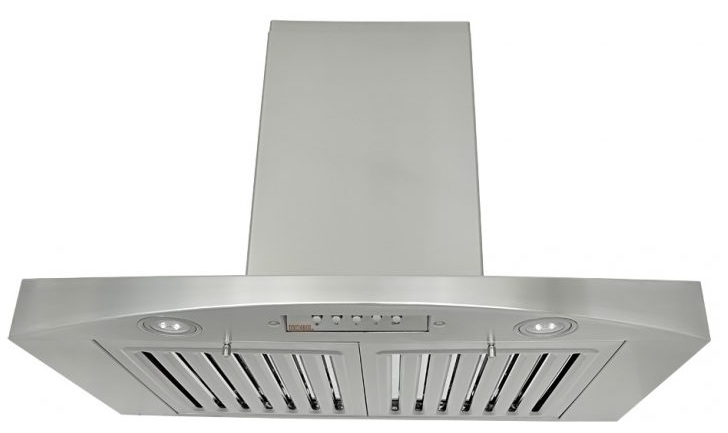

KOBE Premium wall mount range hood is equipped with 3-speed mechanical push button, 680 CFM internal blower, dishwasher-safe baffle filters, and LED lights. This hood is handcrafted with durable 18-gauge commercial grade stainless steel with seamless design.Read More
QuietMode™: At 280 CFM for 30″ or 300 CFM for 36″, this unique feature allows the KOBE range hood to operate at a reduced sound level of 40 decibels (1.0 sone).
Blower Type: Single Horizontal Squirrel Cage
Speed / Control: 3-Speed / Mechanical Push Control
CFM / Sone: For RA3830SQB-WM-1 (30″), 280 / 1.0 / QuietMode™, 450 / 2.2 / Low, 680 / 5.0 / High
Exhaust: Top: 6″ Round
Light: The hood is equipped with 3W LED lights
Filters: Dishwasher safe professional baffle filters allow for easy cleaning.
Attractive Appearance: The seamless curves and stylish appearance of the hood will compliment any kitchen
Easy to Clean: KOBE’s unique design, which includes easy to empty catch areas and smooth hood surface, lets you clean the fans without disassembling the hood.
Quality: Parts are checked for defects and designed for trouble free long term use.
Easy to Install: Our special design makes installation fast and easy.
colour: Commercial Grade Stainless Steel
Versatile Installation: This versatile hood can be used for under cabinet or for wall mount style with the optional duct cover.
Duct Cover: RA028DC-1 (included)
Ceiling Heights: This wall mount hood fits ceiling height between 7 feet to 9 feet.
General Specs | |
| Width (in.) | 29.75 |
| Height (in.) | 42.88 |
| Duct Size (in.) | 6" Round (15.24cm) |
| Depth (in.) | 20.5 |
| Collection | Premium |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 76 |
| Color/Finish Name | Stainless Steel |
| Manufacturer Warranty | 2 Year Parts & Labor |
| Range Hood Type | Wall Mounted |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 30 |
| Smart Compatible | No |
| Maximum CFM | 680 |
| Grease Filter Type | Baffle |
| Bulb Type | LED |
| Sones Rating | 1.0 - 5.0 |
| Fan Speed Options | 3 |
| Vent Location | Top |
| Height Above Cooktop | 26 - 30 |
| Ventilation Direction | Vertical |
| Width (cm) | 75.57 |
| Height (cm.) | 108.90 |
| Depth (cm.) | 52.07 |
| Height Above Cooktop Centimeter | 66.04 - 76.20 |
| Amp | 1.5 |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Ducted |
Additional Information | |
| Control | Mechanical Push Button |
| QuietMode™ | 1.0 Sone |
| ECO Mode | No |
| Ceiling (Min) | 7 feet |
| Ceiling (Max) | 9 feet |
| Fits Ceiling Heights | 7', 7.5', 8', 8.5', 9' |
| Optional Accessories | Backsplash Panel |
