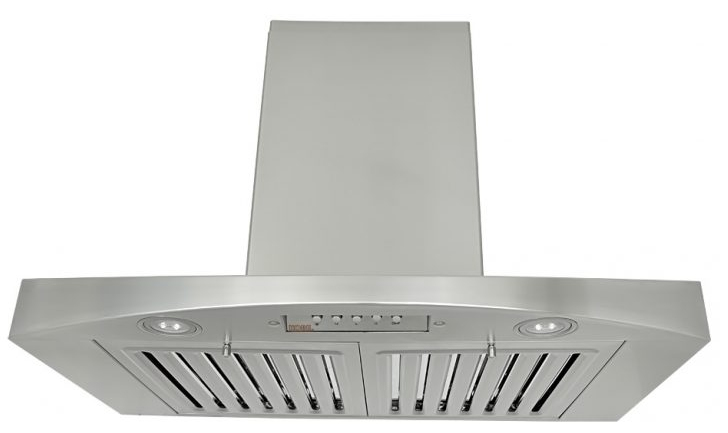

KOBE® Premium® Series 36" Stainless Steel Wall Mounted Range Hood


Model #:

RA3836SQB-WM-1

At a Glance

Product Dimensions 42.88"h x 35.75"w x 20.5"d

KOBE Premium wall mount range hood is equipped with 3-speed mechanical push button, 680 CFM internal blower, dishwasher-safe baffle filters, and LED lights. This hood is handcrafted with durable 18-gauge commercial grade stainless steel with seamless design.Read More

Request a Quote

Appliance Fit Width (in.):36

Get to know this product.

Product Overview

Product Overview

QuietMode™: At 280 CFM for 30″ or 300 CFM for 36″, this unique feature allows the KOBE range hood to operate at a reduced sound level of 40 decibels (1.0 sone).

Blower Type: Single Horizontal Squirrel Cage

Speed / Control: 3-Speed / Mechanical Push Control

CFM / Sone: For RA3836SQB-WM-1 (36″), 300 / 1.0 / QuietMode™, 440 / 2.0 / Low, 750 / 5.6 / High

Exhaust: Top: 6″ Round

Light: The hood is equipped with 3W LED lights

Filters: Dishwasher safe professional baffle filters allow for easy cleaning.

Attractive Appearance: The seamless curves and stylish appearance of the hood will compliment any kitchen

Easy to Clean: KOBE’s unique design, which includes easy to empty catch areas and smooth hood surface, lets you clean the fans without disassembling the hood.

Quality: Parts are checked for defects and designed for trouble free long term use.

Easy to Install: Our special design makes installation fast and easy.

colour: Commercial Grade Stainless Steel

Versatile Installation: This versatile hood can be used for under cabinet or for wall mount style with the optional duct cover.

Duct Cover: RA028DC-1 (included)

Ceiling Heights: This wall mount hood fits ceiling height between 7 feet to 9 feet.

Useful Documents
Specifications

General Specs

Width (in.)35.75
Height (in.)42.88
Duct Size (in.)6" Round (15.24cm)
Depth (in.)20.5
CollectionPremium
ColorStainless Steel
Appliance Fit Width (cm.)91
Color/Finish NameStainless Steel
Manufacturer Warranty2 Year Parts & Labor
Range Hood TypeWall Mounted
ADA CompliantNo
ENERGY STAR CertifiedNo
Outdoor ApprovedNo
Appliance Fit Width (in.)36
Smart CompatibleNo
Maximum CFM750
Grease Filter TypeBaffle
Bulb TypeLED
Sones Rating1.0 - 5.6
Fan Speed Options3
Vent LocationTop
Height Above Cooktop26 - 30
Ventilation DirectionVertical
Width (cm)90.81
Height (cm.)108.90
Depth (cm.)52.07
Height Above Cooktop Centimeter66.04 - 76.20
Amp2.5
Noise Level (Sones)Standard - (High)
Ventilation TypeDucted

Additional Information

ControlMechanical Push Button
QuietMode™1.0 Sone
ECO ModeNo
Ceiling (Min)7 feet
Ceiling (Max)9 feet
Fits Ceiling Heights7', 7.5', 8', 8.5', 9'
Optional AccessoriesBacksplash Panel
