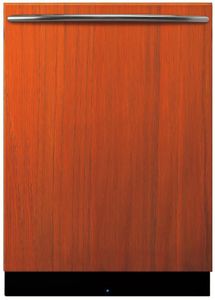

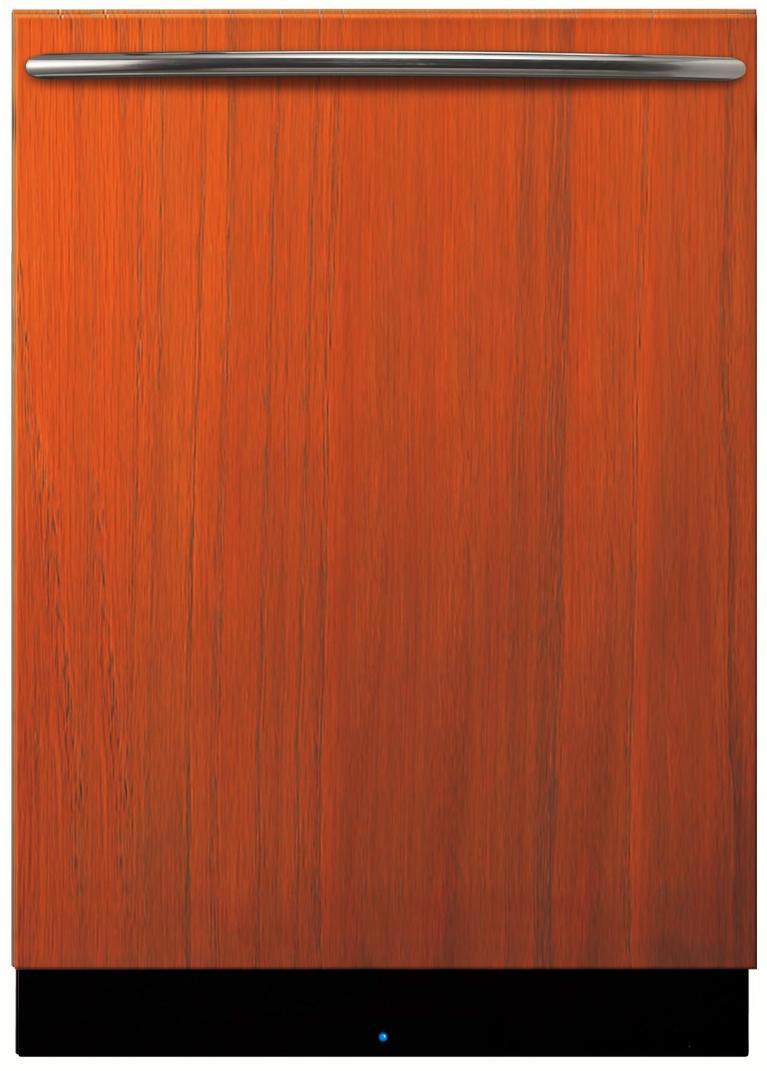

Viking­® 24" Panel Ready Built-In Dishwasher with Water Softener


Model #:

FDWU524WS

At a Glance

Product Dimensions 35.88"h x 23.56"w x 25.19"d

Viking Premiere Dishwashers provide spotless dishes with three wash arms and a triple filtration system. Variable pressure wash adjusts water volume, pressure, and temperature according to load size and soil levels. *CUSTOM PANEL & HANDLE SOLD SEPARATELY*Read More

Request a Quote

Related items:

Get to know this product.

Product Overview

Product Overview

Multi-Level Washing

Variable pressure wash adjusts water volume, pressure, and temperature according to load size and soil levels.

Multi-level washing with stainless steel bottom spray arm, upper spray arm and top nozzle ensures clean dishes.

Turbidity sensor monitors the soil level of the dishes for superior quality.

Flow-through water heater is concealed to provide a safer alternative to exposed heaters.

Quiet Clean™ Performance

Three layers of insulation – bitumen, cotton, and full side walls create one of the quietest dishwashers on the market.

Brushless discharge and circulation motor.

Loading

Upper Smart FullSize™ Rack is designed to allow cleaning of cutlery while washing tall items simultaneously in upper rack

Foldable tines provide versatility for the loading of pots, pans, and uniquely sized items in top and bottom racks

Bottom rack has eight and top rack has six split foldable tines with variable setting from flat to vertical

Viking Premiere Dishwashers provide spotless dishes with three wash arms and a triple filtration system. Variable pressure wash adjusts water volume, pressure, and temperature according to load size and soil levels.

Useful Documents
Specifications

General Specs

Product Weight (lbs.)97
ColorCustom
Weight Kilogram44
Depth Excluding Handles (in.)22.19
Depth Including Handles (in.)25.19
Depth Excluding Handles (cm)56.4
Depth Including Handles (cm)64
Appliance Fit Width (cm.)60
Door Panel TypePanel
Color/Finish NamePanel Ready
ENERGY STAR CertifiedYes
Delay Wash (Up to hours)24
Depth (in.)25.19
Door ColorCustom
Handle ColorStainless Steel
Handle TypeBar Handle
Height (in.)35.88
Noise level (dB)42
Width (in.)23.56
Manufacturer Warranty2 Year Parts & Labor
Appliance Fit Width (in.)24
Custom Panel ReadyYes
Sanitize OptionYes
Smart CompatibleNo
Number Of Place Settings16
ADA CompliantNo
Cut Out Width24
Cut Out Height35.88
Dishwasher TypeBuilt-In
Control Panel TypeTop
Cut Out Depth24
Width (cm)59.8
Height (cm.)91.1
Depth (cm.)64
Product Weight (kg)44
Cut Out Depth Centimeter61
Cut Out Width Centimeter61
Voltage120
Frequency60
Amp12
Cut Out Height Centimeter91.3
Sound Rating RangeQuietest
Dishwasher FeaturesAdjustable Rack, Automatic Temperature Control, Cutlery Holder, Cycle Status Lights, Movable Tines, Sensor Dry, Sensor Wash, Stemware Holder
Third RackYes

Construction

Estimated Yearly Electricity Use (kWh):225
Control Type:Touch Button
Cycle Indicator:Yes

Styling

Handle Color:Stainless Steel

Other

Top Rack Type:3 Position; Adjustable
Stemware:Adjustable
Foldable Tines:Yes
Cutlery Basket:Yes
Water Softener:Yes
