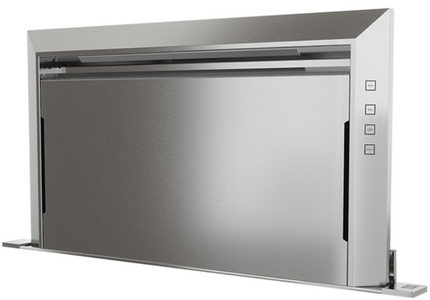

Zephyr Lift 30" Stainless Steel Downdraft Ventilation

Zephyr

Model #:

DLI-E30ASX

Model #: DLI-E30ASX
590451
Zephyr
$99,999.00

At a Glance

Product Dimensions 18"h x 30"w x 2.5"d

The Lift Downdraft is everything you want in a luxury ventilation system — power, performance, and good looks. Packed with perks like the Dual-level BriteStrip™ LED lighting, Tri-Capture Zones and 4-Way Ducting, the Lift is ready to help you rise to any occasion with the touch of a button.Read More

Request a Quote

Get to know this product.

Product Overview

Product Overview

The Lift Downdraft is everything you want in a luxury ventilation system — power, performance, and good looks. Packed with perks like the Dual-level BriteStrip™ LED lighting, Tri-Capture Zones and 4-Way Ducting, the Lift is ready to help you rise to any occasion with the touch of a button.

18" Chimney Rise

Dual-Level Lighting

Filter Clean Reminder

Tri-Capture Zones

BriteStrip™ LED Lighting

Capacitive Touch Controls

Multiple Blower Options

Optional Recirculating Kit

*Blower sold separately
Useful Documents
Downdraft User Manual
Downdraft Specification Sheet
Exploded View Diagram
Gas Cooktop Seal Kit Manual
Range Trim Kit Manual
Recirculating Kit Manual
External Blower Manual
Blower Specification Sheet
Make-Up Air Manual
Installation Parts Guide
Specifications

General Specs

Width (in.)30
Height (in.)18
Depth (in.)2.5
CollectionLift
ColorStainless Steel
Appliance Fit Width (cm.)76
Manufacturer Warranty1 Year Labor / 2 Year Parts
Color Finish NameStainless Steel
Range Hood TypeDowndraft
ENERGY STAR CertifiedNo
Appliance Fit Width (in.)30
Width (cm)76.2
Height (cm.)45.72
Depth (cm.)6.35
Range Hood FeaturesRetractable
Ventilation TypeConvertible (Both)

Performance

Internal/In-Line Blower (DBI-600A)200-600 CFM
In-Line Blower (PBN-1000A)500-1,000 CFM
External Blower (CBE-1000)500-1,000 CFM

Overview

ControlsCapacitive Touch
Speed Levels3
Auto On/OfYes
Lighting1
Dual-Level LightingYes
FiltersAluminum Mesh x 2
Filter Clean ReminderYes
Tri-Capture ZonesYes
4-Way DuctingYes
18” Chimney RiseYes
Recirculating OptionYes

Duct Specifications

Front Ducting8”(DBI), 10”(PBN/CBE)
Left/Right Ducting1-7/8” x 19” to 8”/10” round
Rear Ducting1-7/8” x 19” to 8”/10” round
Bottom Ducting1-7/8” x 19” to 8”/10” round

AC Power

Hood w/ DBI-600A120V, 60Hz, Max. 3A
Hood w/ PBN-1000A120V, 60Hz, Max. 4.4A
Hood w/ CBE-1000120V, 60Hz, Max. 4.3A
